Pfeiffer TC 110 Electronic Turbo Pump Drive Unit to OmniControl 200 Controller Connection Cable with Two M8 Accessory Ports 3 m Long, PN: PM 061 351-T

Condition:
  New
Part Number:
  P103335
Warranty:
  Against Product Defect

Available Now   20  

Sale: $498.05

Pfeiffer TC 110 Electronic Turbo Pump Drive Unit to OmniControl 200 Controller Connection Cable with Two M8 Accessory Ports 3 m Long, PN: PM 061 351-T 498.05
Currency: US Dollar (USD)

Description

Pfeiffer TC 110 Electronic Turbo Pump Drive Unit to OmniControl 200 Controller Connection Cable with Two M8 Accessory Ports 3 m Long.
Pfeiffer Part Number: PM 061 351-T.

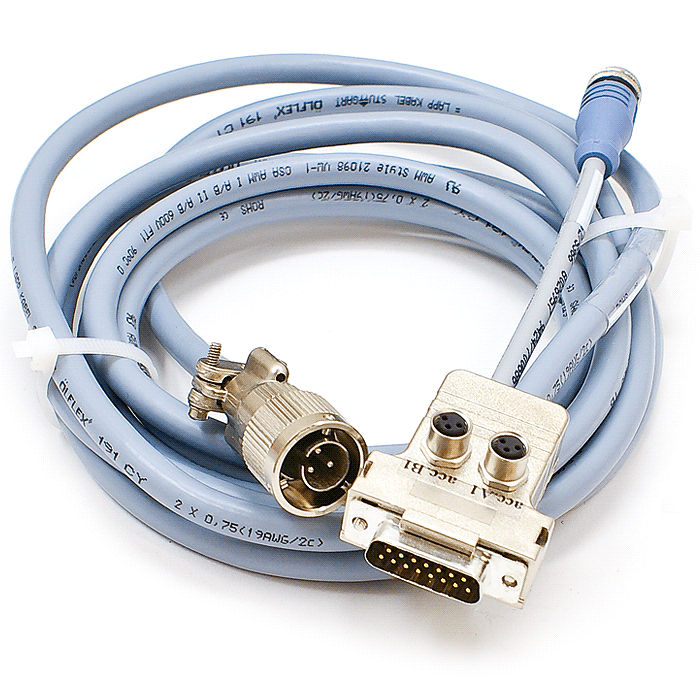

This 3 meter long cable supplies power from a Pfeiffer OmniControl 200 or DCU-110 turbo pump controller to the integrated TC 110 electronic drive unit on Pfeiffer HiPace 80 and HiPace 300H turbo pumps. A 15-pin D-Sub connector on one end of the cable plugs into the TC 110 drive unit. The D-Sub connector splits out into two cables: The 3 meter long, heavy 3 conductor cable connects to the OmniControl 200 or DCU 110 unit and supplies 24 VDC power to the TC 110 and pump. The short cable emanating from the D-Sub connector is for communications. This short cable is extended with a 3 meter long RS485 extension cable (part number P1012287) which then connects to the OmniControl 200 or DCU-110 controller, allowing it to manage all main parameters and functions of the turbo pump.

The 15-pin D-Sub connector is modified to include two M8 connectors in its side. These are accessory ports used to connect optional accessories such as a forced air-cooling kit, a solenoid vent valve, and/or a sealing gas valve. When adding accessories, make sure that the total power draw does not exceed the capacity of the controller. This two accessory power and communication connection cable has Pfeiffer part number PM 061 351-T.
