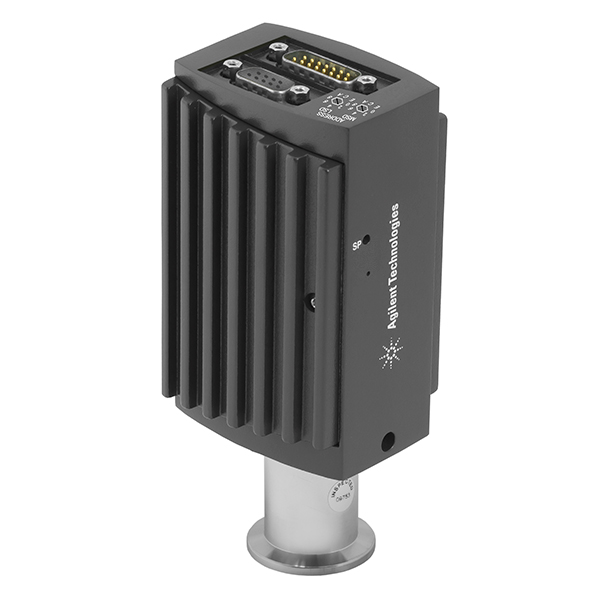

Agilent Varian FRG-720 KF25 Pirani, Bayard Alpert Combo Gauge, Profibus, w/set pts. PN FRG720KF25SP

Condition:
  New
Part Number:
  P107228
Warranty:
  Varian Warranty

Out of Stock   

Sale: $2,848.52

Agilent Varian FRG-720 KF25 Pirani, Bayard Alpert Combo Gauge, Profibus, w/set pts. PN FRG720KF25SP 2848.52
Currency: US Dollar (USD)

Description

Agilent Varian FRG-720 KF25 Pirani and Bayard Alpert B/A Sensor Single Filament Combination Gauge With Profibus Connector
and Set Points. Hot Cathode Ion,
Pressure Range 760 to 3.8 X 10-10 Torr, KF25, Agilent Varian PN FRG720KF25SP.

This Agilent Varian Gauge is a Pirani and Bayard Alpert combination gauge, hot cathode ionization design. It contains a long life yttrium oxide coated iridium single filament with Profibus Connector and Set Points. The gauge can measure pressure from 3.8 X 10-10 Torr to atmosphere. Over the whole measuring range, the gauge has a continuous characteristic curve and its measuring signal is output as logarithm of the pressure. The gauge functions with a Bayard-Alpert hot cathode ionization measurement system (for < 2.0×10-2 Torr) and a Pirani measurement system (for >5.5×10-3 Torr). In the overlapping pressure range of 2.0×10-2 to 5.5×10-3 Torr, a mixed signal of the two measurement systems is output. The hot cathode is switched on by the Pirani measurement system only below the switching threshold of 2.4×10-2 Torr (to prevent filament burnout). It is switched off when the pressure exceeds 3.2×10-2 Torr.

This Profibus gauge has a fieldbus interface that conforms to the Profibus DPV1 standard. Two adjustable switching functions are integrated in the gauges. The corresponding relay contacts are available at the sensor cable connector. The basic sensor and sensor electronics of the Profibus gauge are the same as in the standard FRG-720.They have a KF-25 vacuum flange fitting. This is the Profibus FRG-720 gauge only. No LCD Display user replaceable sensors, signal cables and pressure controllers sold separately on this website. Agilent Varian Part Number FRG720KF25SP. A complete Operating Instruction Manual and Spec Sheet is available for download in .pdf format below under AVAILABLE DOWNLOADS.

Compatible with Agilent Varian Pressure Gauge Controllers:
  • XGS-600 Multi-gauge Controller
  • Active Gauge Controllers AGC-100, AGD-100
