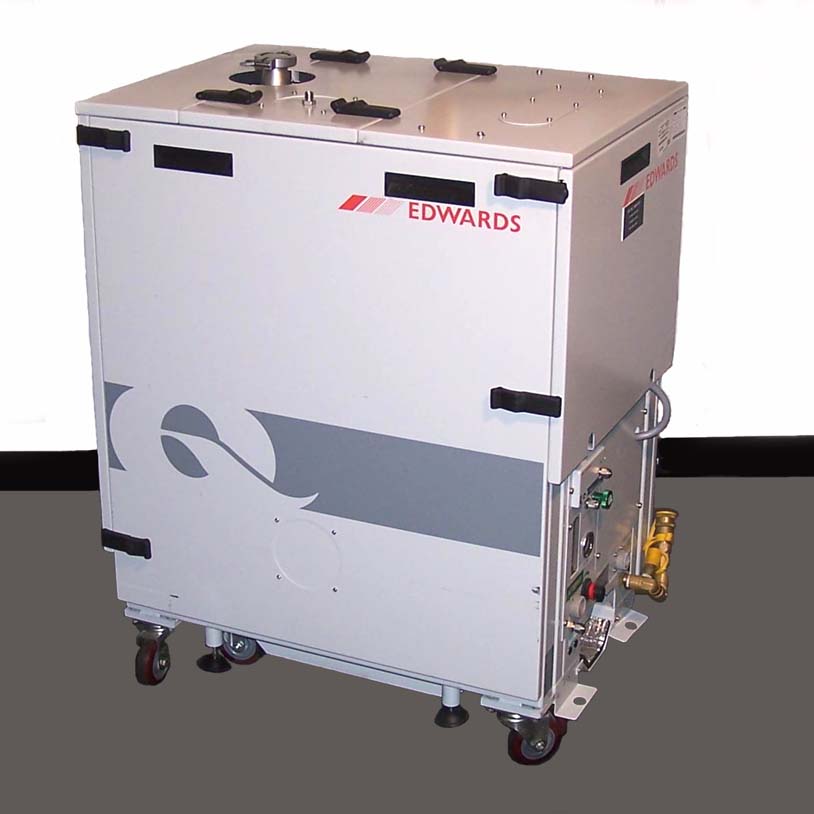

BOC Edwards QDP80 QDP 80 Dry Vacuum Pump QMB500 QMB 500 Dry Booster Blower System Rebuilt

BOC Edwards QDP80 QDP 80 Dry Vacuum Pump QMB500 QMB 500 Dry Booster Blower System Rebuilt

These Edwards QDP80 QDP 80 Dry Vacuum Pump QMB500 QMB 500 Dry Booster Blower "Dry Pumps" are ideal for the corrosive enviroment of semiconductor processing. The applications range from light duty loadlock and sputtering to demanding processes including plasma etch, LPCVD, PECVD, and MOCVD.

The pump specifications are as follows:

Supply Voltage
3 Phase 208/460 VAC

Warm-Up Time
15 min

Inlet Connection

ISO 63

Outlet Connection
NW40

Peak Speed
96 m³h^-1
56.5 ft³min^-1

Displacement
110 m³h^-1
64.7 ft³min^-1

Ultimate Vacuum
1 x 10^-2 mbar
8 x 10^-3 Torr

Rebuild Process:

Every dry vacuum pump we sell goes through a rigorous rebuild process at our Albuquerque, New Mexico (NM) location!
Each pump is fully dismantled and all parts are decontaminated and inspected.
Damaged or worn parts are replaced.
All bearings, o-rings, seals, and gaskets are replaced.
For BOC Edwards dry pumps (IQDP, QDP, DP): In addition to the parts listed above, the claws and sleeves are also replaced.
Pumps are attached to our computer controlled pressure diagnostics system where their performance is monitored for 72-hours under varying load.
Pumps are leak tested to ensure safety during operation.
Pump is cleaned and painted.
Crated for storage or shipment.

Each pump comes with a full 90-day warranty for parts and labor after it has been serviced at our Albuquerque, New Mexico (NM) facility; call (505) 872-0037 today.

Rebuild and Repair Services:
We offer Rebuild and Repair services for a variety of Pumps at our Albuquerque, New Mexico (NM) location. The rebuilding procedure, as listed above, is a rigorous and detailed process that requires extensive knowledge and experience in rebuilding, repairing, and testing. It is our technicians' experience and knowledge that gives us confidence in standing behind the quality of our work. This expertise of rebuild services covers a wide range of categories including: single and two stage rotary vane mechanical pumps, diffusion pumps, turbo molecular pumps and controllers, mechanical booster blowers, dry scroll, dry vacuum pumps, and other various pumps. This includes manufacturers such as Alcatel, BOC Edwards, Leybold, Welch, Varian, Precision Scientific, HyVac, Savant, Kinney, Pfeiffer Balzers, Stokes, Seiko Seiki, and Ebara. After the rebuild or repairs have been completed at our Albuquerque, New Mexico (NM) facility, all pumps are fully tested and returned with our 90-day warranty for parts and labor. If you have any questions about our rebuilding procedure or would like to get a quote please call our Albuquerque, New Mexico (NM) location at 505-872-0037. Our team of skilled technicians is rebuilding pumps on a daily basis so call today to schedule your pumps for rebuilding!
