Ideal Vacuum Premium Helium Spray Gun Probe Kit with 1 Liter High Pressure Cylinder, Regulator, Refill Adapter, and Quick Connect Fittings

Print Version
Condition:
  New
Part Number:
  P1012177
Warranty:
  Against Product Defect

Available Now:  30  

Sale: $1,050.00

Ideal Vacuum Premium Helium Spray Gun Probe Kit with 1 Liter High Pressure Cylinder, Regulator, Refill Adapter, and Quick Connect Fittings 1050

Description

Ideal Vacuum PREMIUM Helium Spray Gun Probe Kit with 1 Liter High Pressure Cylinder, Regulator, Refill Adapter, and Quick Connect Fittings.

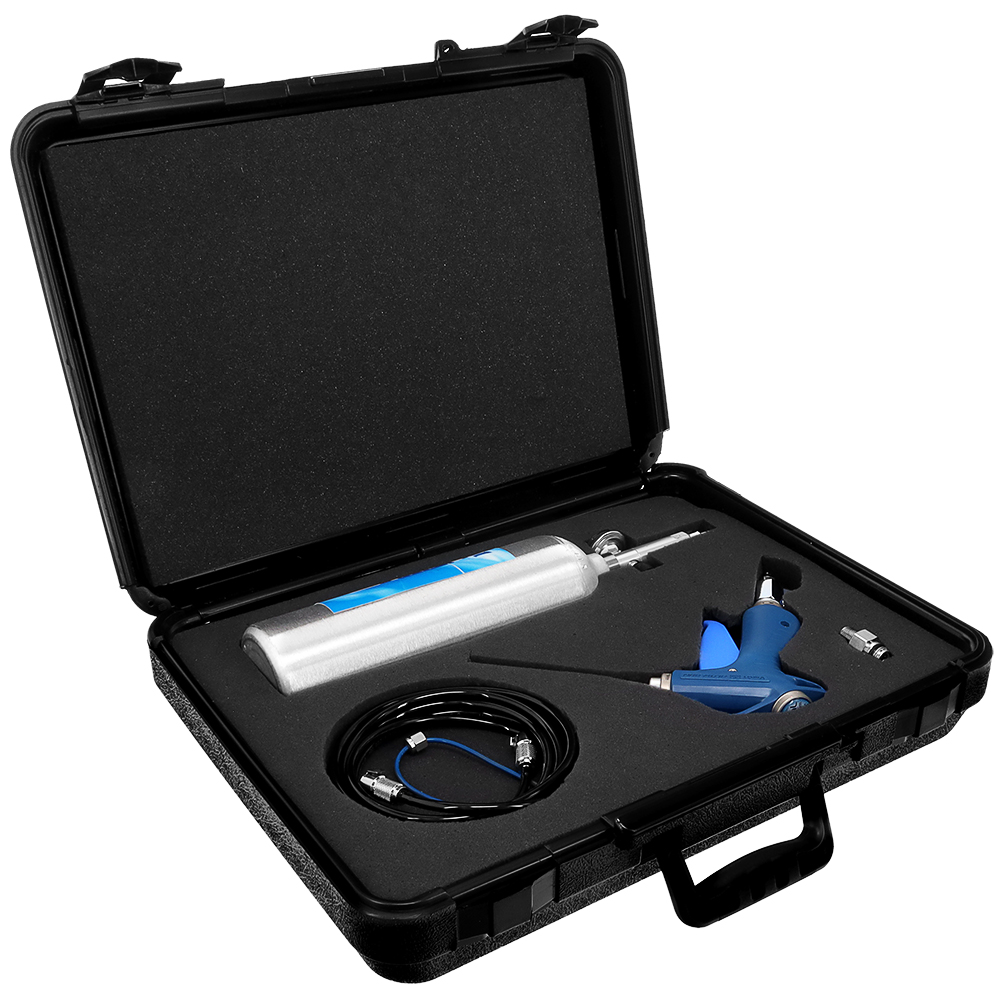

This Ideal Vacuum premium helium spray probe kit includes a lightweight, aluminum, refillable high pressure cylinder with an adjustable, precise output regulator. The helium flow rate can be adjusted between 0 and 0.1 Standard Liters Per Minute (SLPM) on the cylinder's detacheable regulator (1-5 psig). The reservoir cylinder is 3 diameter x 11 tall, with a volume of 1000 cc. The cylinder has a burst pressure rating of 1800 psi. We recommend it be filled normally to about 500 psig, more than enough for numerous leak detection procedures. (Do Not Exceed the Cylinder's Rated Pressure.)

In addition to being extremely portable with its refillable cylinder, this premium helium spray gun probe kit also includes a refill adapter for refilling the cylinder from a larger helium bottle, 10 ft. flexible supply hose, a gun-mounted, 1/4 turn shutoff valve, a 4" rigid stainless steel probe tip, and an 8" long flexible probe tip, all packaged in a durable, foam lined storage and carrying case. This kit is designed for use in maintenance or production leak detection applications.

The supply hose has C10 quick connect fittings on either end to connect the cylinder's regulator to the spray gun.

Download the Helium Spray Probe User Guide and the Cylinder Refilling Instruction Manual for more information.
