Product Image 1
Product Image 2
Product Image 3

Condition:
  New
Part Number:
  P106860
Warranty:
  Against Product Defect

Out of Stock   6x6x6 Cubic Modular Vacuum Chamber, Basic Chamber Development Kit, Includes Plates, Seals, And Hardware 1293.24
Anticipated Arrival:  4 on 2020-07-27
RoHS Compliance Sticker


$1,293.24


Print Version

6x6x6 Cubic Modular Vacuum Chamber, Basic Chamber Development Kit, Includes Plates, Seals, And Hardware


0.125 cu. ft. Ideal Vacuum Cube, Starter Chamber Development Kit (CDK), Includes Plates, Seals, And Hardware

Assemble a customized aluminum vacuum chamber in minutes with our Ideal Vacuum Cube 6x6x6 inch Chamber Development Kit (CDK). Included with your CDK are 6 interchangeable side plates fitted with blank plates, basic ports, and an interior threaded breadboard for easy mounting of your process or experiment. Additional components can be purchased at any time to greatly expand the capabilities of your vacuum chamber, or add different plates to convert your chamber to a completely new purpose. These are manufactured from 6061-T6 aluminum.





Press ESC to Close

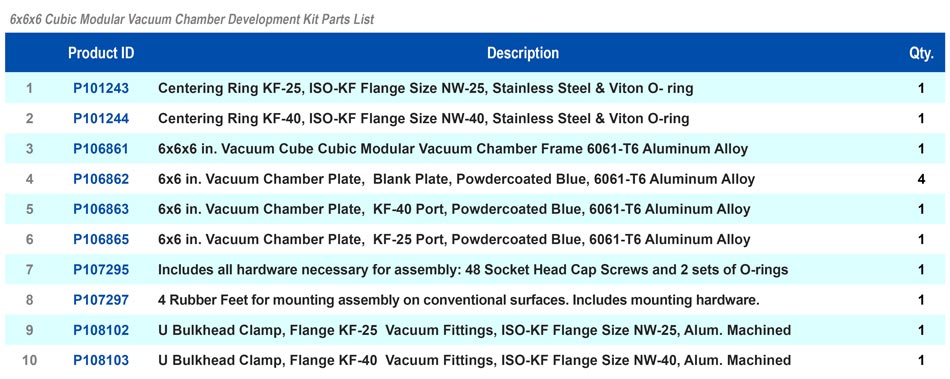

Availability Of Kit Components

Kit: P106860 - 6x6x6 Cubic Modular Vacuum Chamber, Basic Chamber Development Kit, Includes Plates, Seals, And Hardware
Component
Desc.
Req'd
Avail
Blank Flange KF-25 Vacuum Fittings, ISO-KF Flange Size NW-25, Stainless Steel
1
203
Blank Flange KF-40 Vacuum Fittings, ISO-KF Flange Size NW-40, Stainless Steel
1
93
Centering Ring KF-25 Vacuum Fittings, ISO-KF Flange Size NW-25, Stainless Steel & Viton® O-ring
1
2638
Centering Ring KF-40 Vacuum Fittings, ISO-KF Flange Size NW-40, Stainless Steel & Viton® O-ring
1
1172
Bulkhead Clamp, Flange KF-25 Vacuum Fittings, ISO-KF Flange Size NW-25, Aluminum
1
68
Ideal Vacuum Cube™ 6x6x6 in. Vacuum Chamber Frame, 6061-T6 Aluminum Alloy
1
-1
Ideal Vacuum Cube 6x6 Vacuum Chamber Blank Plate, Without Flanged Ports, 6061-T6 Aluminum Alloy
4
85
Ideal Vacuum Cube, 6x6 Vacuum Chamber Plate With One Each KF-40 (NW-40) Pumping or Feedthrough Port
1
4
Ideal Vacuum Cube, 6x6 Vacuum Chamber Plate With One Each KF-25 (NW-25) Pumping or Feedthrough Port
1
11
Ideal Vacuum Cube Hardware Kit, Designed For 6x6x6 Cubes, Includes Viton O-rings And Plate Bolts
1
8
Ideal Vacuum Cube Feet Kit, Supports The Weight of a Complete Cube Assembly, Vibration Mount
1
142
IVP Bulkhead U-Clamp, Flange KF-40 Vacuum Fittings, ISO-KF Flange Size NW-40, Aluminum
1
52
PDF Logo RoHS Compliance Download

PDF Logo Ideal Vacuum Cube 6x6x6 User Manual.pdf

PDF Logo Ideal Vacuum Cube Brochure 2019 v2 LG.pdf

PDF Logo Ideal Vacuum Products Catalog-2.PDF

PDF Logo Ideal Vacuum Cube Plate Installation Manual.pdf
